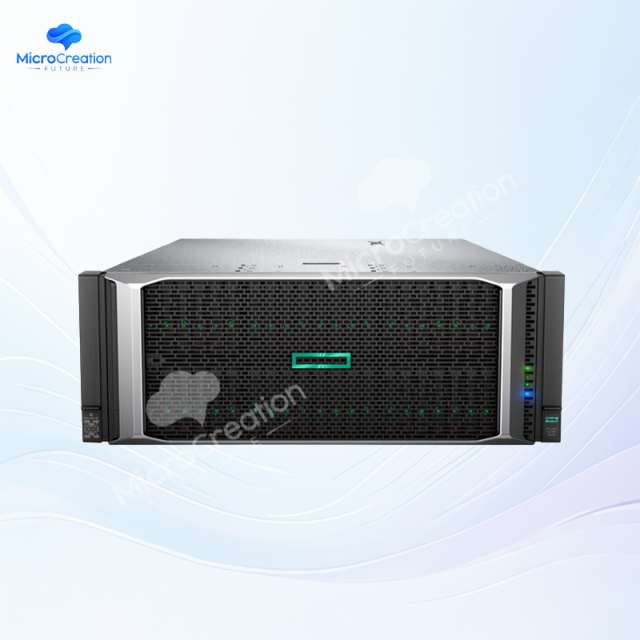

HPE ProLiant DL580 Gen10 Rack Server | 4-Socket Enterprise Powerhouse

Overview

The HPE ProLiant DL580 Gen10 is a 4U, four-socket x86 flagship engineered for business-critical and data-intensive workloads that demand uncompromised compute density. Powered by second-generation Intel Xeon Scalable processors, it delivers up to 4 × 28 cores, 6 TB of DDR4 memory and 12 TB of HPE Persistent Memory for in-memory databases and analytics. Sixteen PCIe 3.0 slots (via riser kits) enable massive I/O expansion for GPUs, NVMe adapters and high-speed networking, while 48 front-access SFF bays let you balance ultra-fast NVMe flash with high-capacity SAS drives.

Built-in HPE iLO 5 with Silicon Root of Trust secures the server firmware against malware and unauthorised changes; Runtime Firmware Verification checks critical code every 24 hours, and Secure Recovery can automatically roll back to a known-good image. Unified management through HPE OneView simplifies deployment, updates and health monitoring across the fleet.

Product Series

Key Features

Performance & Scalability

• Up to four second-generation Intel® Xeon® Scalable CPUs (up to 28 cores each) deliver massive 4-socket compute density. :contentReference[oaicite:0]{index=0}
• 48 DDR4-2933 DIMM slots support 6 TB of system memory, with an option for 12 TB when paired with HPE Persistent Memory (PMem 100). :contentReference[oaicite:1]{index=1}
• Up to 16 PCIe 3.0 slots (with secondary/tertiary risers) for GPUs, NVMe adaptors and high-speed NICs. :contentReference[oaicite:2]{index=2}

Flexible, High-Density Storage

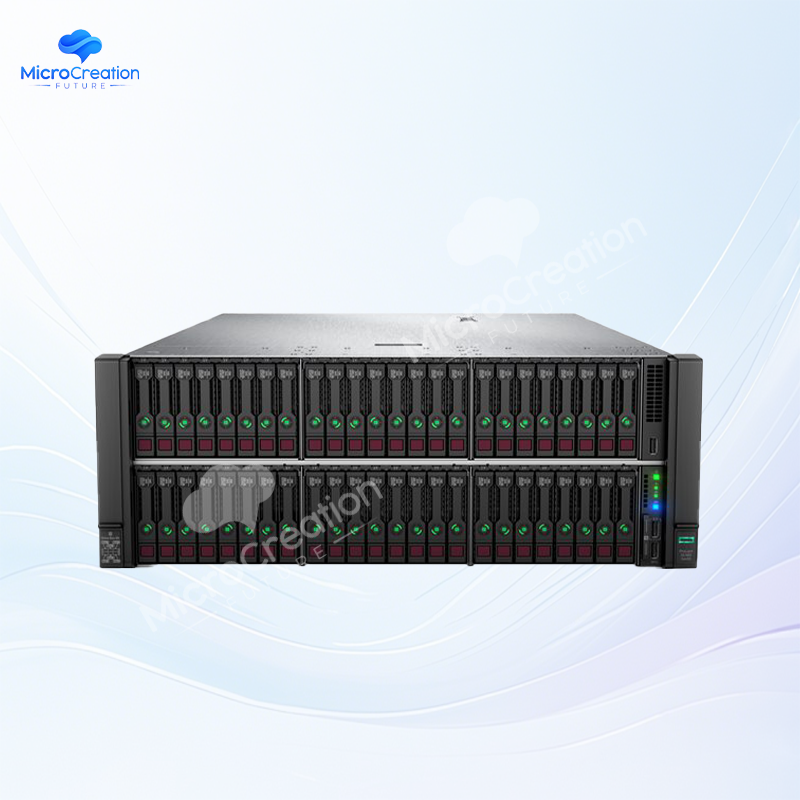

• Standard 8 × 2.5-in SFF hot-swap cage; scalable in 8-drive increments to a maximum of 48 SFF bays (SAS/SATA or mixed NVMe). :contentReference[oaicite:3]{index=3}
• Choice of embedded Smart Array S100i (software RAID) or performance SAS RAID controllers (P408i-p / P816i-a). :contentReference[oaicite:4]{index=4}

Enterprise-Grade Security & Management

• Hardware-anchored Silicon Root of Trust, run-time firmware validation and secure recovery protect against malicious code. :contentReference[oaicite:5]{index=5}
• iLO 5 Security Dashboard, server configuration lock and workload performance advisor simplify compliance and hardening. :contentReference[oaicite:6]{index=6}
• Automated provisioning, monitoring and update workflows with HPE OneView. :contentReference[oaicite:7]{index=7}

Reliability & Serviceability

• Twelve hot-plug N+1 redundant fans and up to 4 × 800 / 1600 W 96 % efficient Flex-Slot PSUs ensure continuous uptime. :contentReference[oaicite:8]{index=8}

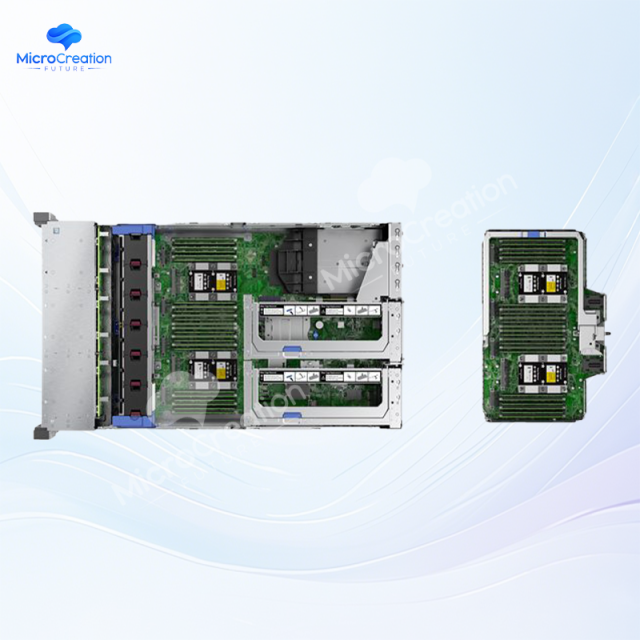

• Tool-less access panels, quick-removal CPU mezzanine tray and colour-coded components speed servicing. :contentReference[oaicite:9]{index=9}

Technical Specifications
