Product Series

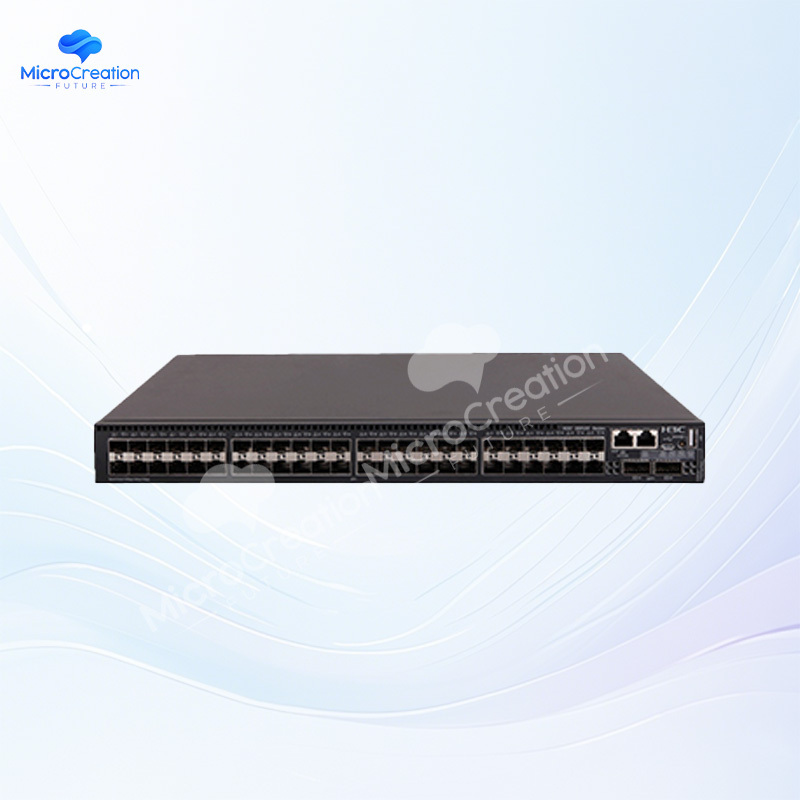

H3C S6520X-EI Series
Models
S6520X-30QC-EI, S6520X-54QC-EI, S6520X-30HC-EI, S6520X-54HC-EI, S6520X-30HF-EI, S6520X-54HF-EI
Port Configurations
24/48 × 1/10GE SFP+ ports, 2/6 × 40GE/100GE QSFP+/QSFP28 ports
Expansion Slots
2 × expansion slots supporting various interface modules
Switching Capacity
Up to 2.56 Tbps
Forwarding Rate
Up to 720 Mpps
Dimensions (H × W × D)
43.6 × 440 × 360 mm
Weight
≤ 7.4 kg
Power Supply
Dual modular power supplies (AC/DC options)
Fan Trays
Modular, front-to-back or back-to-front airflow
Operating Temperature
0°C to 45°C
Operating Humidity
5% to 95% (non-condensing)
Operating System
Comware V7
Supported Protocols
VXLAN, EVPN, MPLS, OSPF, BGP, ERPS, etc.
Typical Applications
Enterprise core and aggregation layers, data center access
