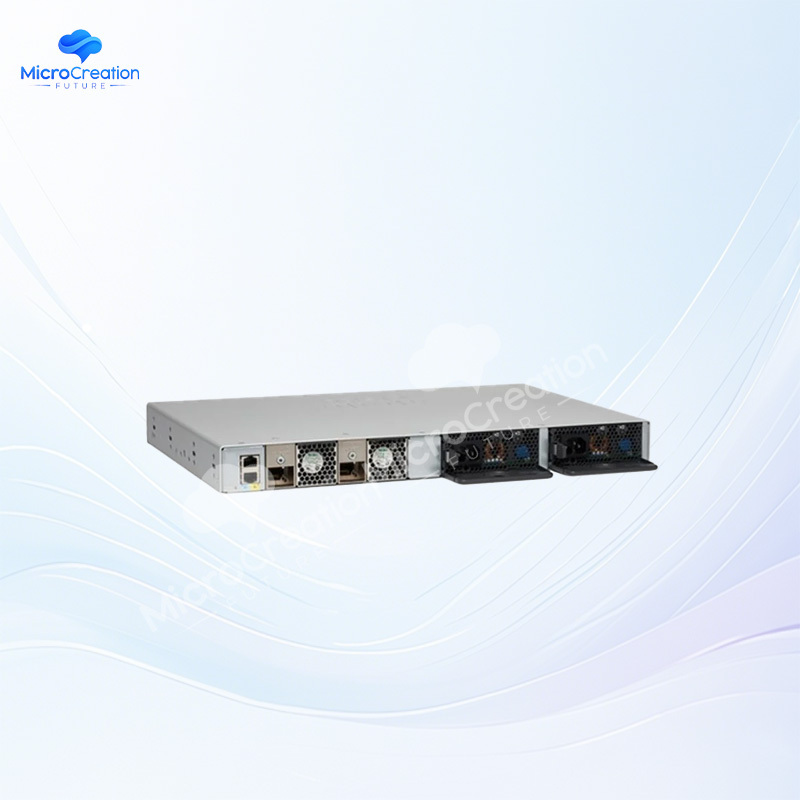

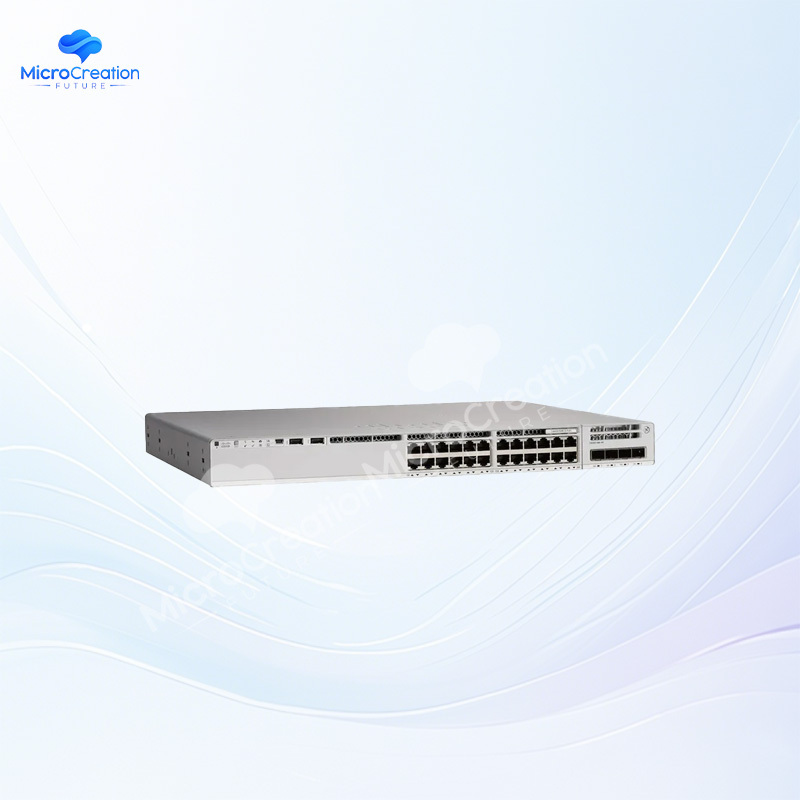

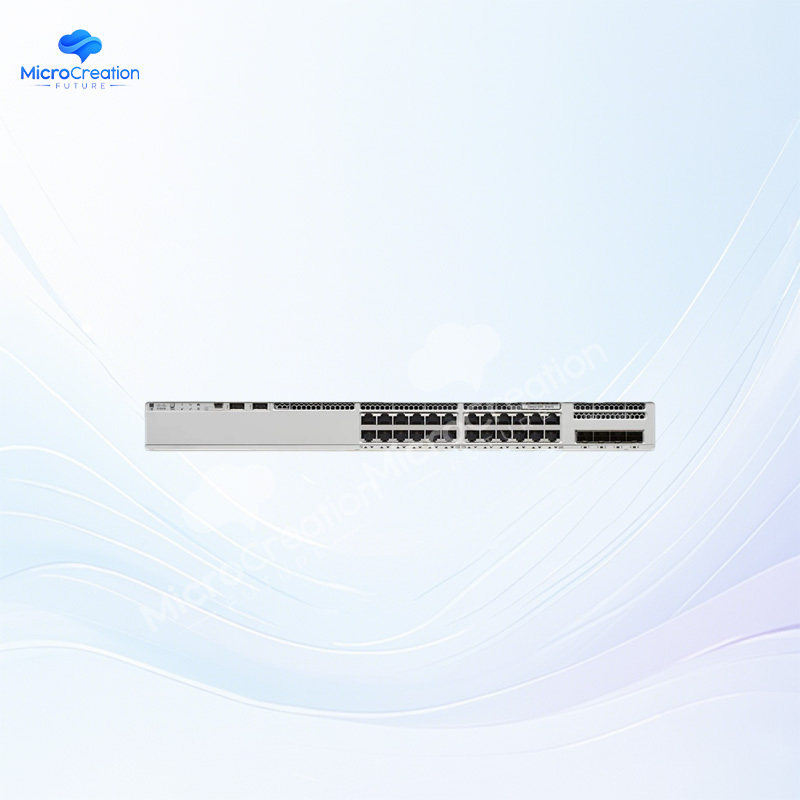

Model
C9200L-24T-4G-E++
Series
Cisco Catalyst 9200
Ports
24 × 10/100/1000 Mbps RJ-45 Ethernet
Uplink Ports
4 × 1G SFP fixed uplink ports
Switching Capacity
56 Gbps
Forwarding Rate
83.33 Mpps
Stacking Bandwidth
80 Gbps (StackWise-80)
MAC Address Table
32,000 entries
VLANs Supported
Up to 4,000
DRAM
2 GB
Flash Memory
4 GB
Dimensions (H × W × D)
1.73 × 17.5 × 11.3 inches (4.4 × 44.5 × 28.8 cm)
Weight
10.14 lbs (4.6 kg)
Power Supply
Dual redundant, default 350W AC
Operating Temperature
23°F to 113°F (-5°C to 45°C)
Operating Humidity
5% to 90% non-condensing
Software
Cisco IOS XE
Security Features
MACsec, TrustSec, AAA, RADIUS
Warranty
Limited Lifetime Warranty
