Model

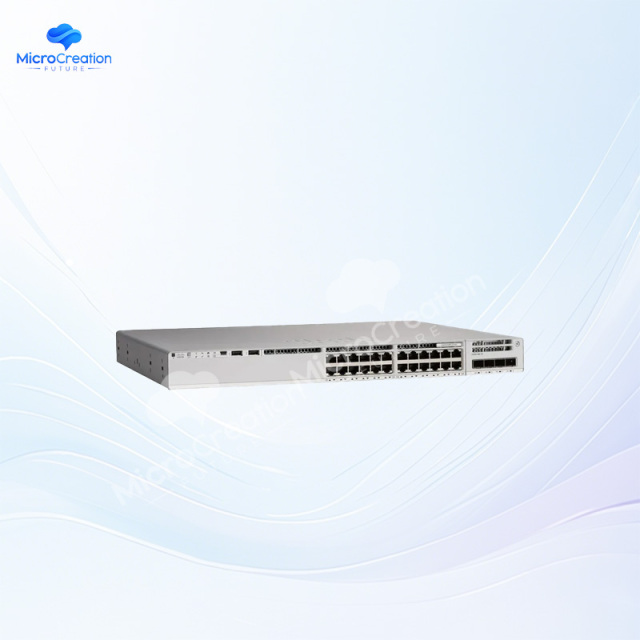

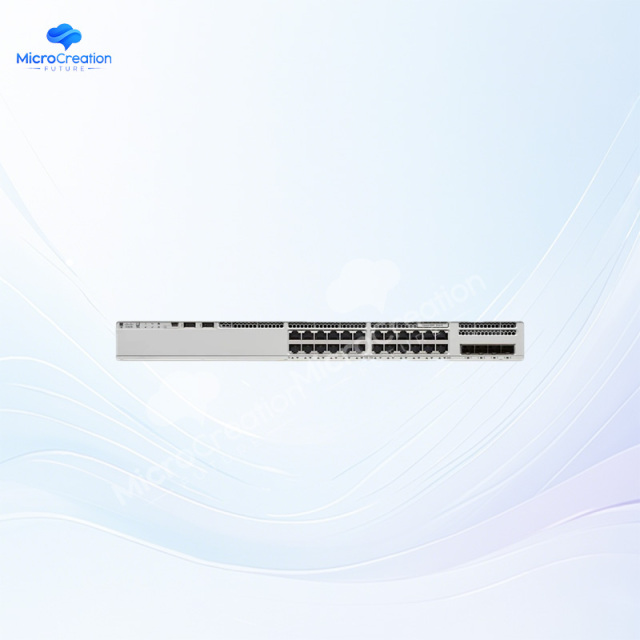

C9300-24P-A
Series
Cisco Catalyst 9300
Ports
24 × 10/100/1000 Mbps RJ-45 Ethernet (PoE+)
Uplink Module Slot
1 × Modular slot for network modules
Switching Capacity
208 Gbps
Forwarding Rate
154.76 Mpps
Stacking Bandwidth
480 Gbps (StackWise-480)
MAC Address Table
32,000 entries
VLANs Supported
Up to 4,000
DRAM
8 GB
Flash Memory
16 GB
Dimensions (H × W × D)
1.73 × 17.5 × 17.5 inches (4.4 × 44.5 × 44.5 cm)
Weight
16.33 lbs (7.41 kg)

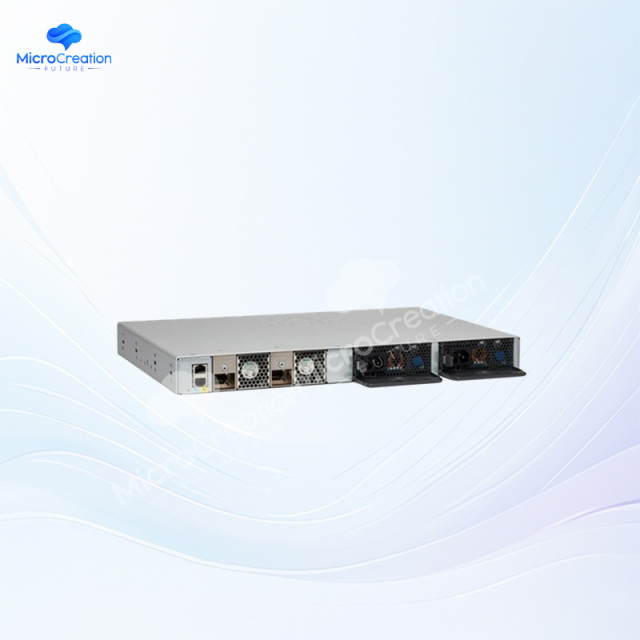

Power Supply
Dual redundant, default 715W AC
Operating Temperature
23°F to 113°F (-5°C to 45°C)
Operating Humidity
5% to 90% non-condensing
Software
Cisco IOS XE
Security Features
MACsec, TrustSec, AAA, RADIUS
Warranty
Limited Lifetime Warranty
