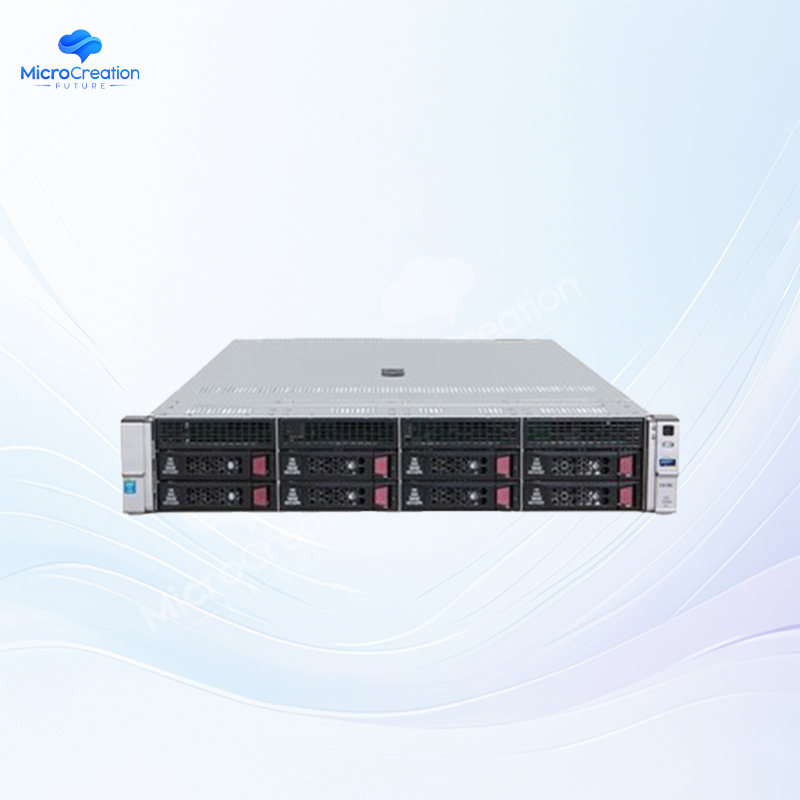

The H3C UniServer R4900 G2 is a 2 U rack-mount server built for medium-to-large enterprises seeking a balance of density, reliability and cost efficiency. Standardized on 2nd-gen Intel® Xeon® E5 v4 processors and up to 24 DIMM slots, the R4900 G2 handles demanding virtualized, database and general-purpose workloads with ease.
Drive flexibility is a hallmark: choose 8 × 3.5″ LFF hot-swap bays for high-capacity drives, while the onboard UN-RAID-2000-M2-F controller brings enterprise-grade 12 Gb/s SAS RAID with battery-backed cache. Dual embedded 1 GbE ports plus an H3C HDM management interface ensure streamlined connectivity and remote administration.
| SKU | CPU / Memory | Drive Bays | Controller | Network | PSU |
|---|---|---|---|---|---|
| 0235A3JH | E5-2609 v4 · 1 × 16 GB | 8 × 3.5″ LFF | UN-RAID-2000-M2-F (2 GB) | 4 × 1 GbE + HDM | 550 W (94%) |
| 0235A3JM | E5-2620 v4 · 1 × 16 GB | 8 × 2.5″ SFF | UN-RAID-2000-M2-F (2 GB) | 4 × 1 GbE + HDM | 550 W (94%) |
| 0235A3JJ | E5-2630 v4 · 1 × 32 GB | 8 × 2.5″ SFF | UN-RAID-2000-M2-F (2 GB) | 4 × 1 GbE + HDM | 550 W (94%) |
| 0235A3JK | E5-2603 v4 · 1 × 16 GB | 8 × 3.5″ LFF | UN-RAID-2000-M2-F (2 GB) | 4 × 1 GbE + HDM | 550 W (94%) |
| 0235A3JG | E5-2609 v4 · 1 × 16 GB | 8 × 2.5″ SFF | UN-RAID-2000-M2-F (2 GB) | 4 × 1 GbE + HDM | 550 W (94%) |
| 0235A3JL | E5-2640 v4 · 1 × 32 GB | 8 × 2.5″ SFF | UN-RAID-2000-M2-F (2 GB) | 4 × 1 GbE + HDM | 550 W (94%) |
| 0235A3JF | E5-2603 v4 · 1 × 16 GB | 8 × 2.5″ SFF | UN-RAID-2000-M2-F (2 GB) | 4 × 1 GbE + HDM | 550 W (94%) |
| Processor | Intel® Xeon® E5-2603/2609/2620/2630/2640 v4 series (6–10 cores, 1.7–2.6 GHz) |
|---|---|
| Sockets | 1 (supports up to 2) |
| Memory | 16 – 32 GB DDR4-2400 RDIMM (1–2 modules); up to 24 slots (max 384 GB) |
| Drive Bays | 8 × 3.5″ LFF or 8 × 2.5″ SFF hot-swap bays |
| RAID Controller | UN-RAID-2000-M2-F 12 Gb/s SAS, 2 GB cache |
| Network | 4 × 1 GbE onboard + H3C HDM management port |
| Expansion Slots | 3 × PCIe 3.0 + 2 × PCIe for add-on NICs/controllers |
| Power Supply | 1 × 550 W (94% eff.) non-hot-swap, optional redundant |
| Fans | 2 × hot-plug N+1 redundant |
| Form Factor | 2 U rackmount |
| Dimensions | 440 × 700 × 88 mm (W × D × H) |
| Warranty | 3 yr 5×9 NBD |
